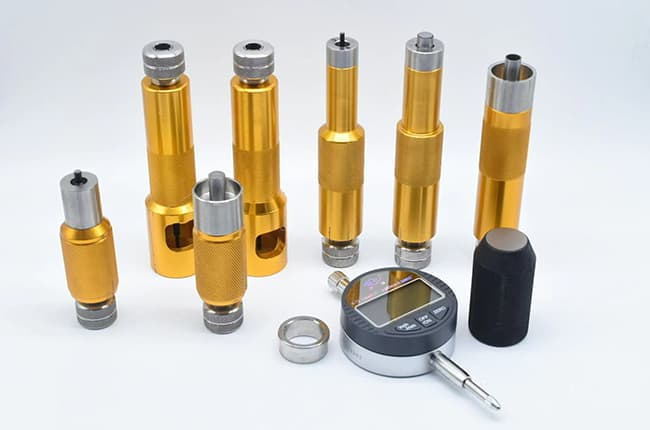

| Name | Common Rail Injector Measure Tool |
| Packing type | Aluminum Suitcase |
| Function | Test nozzle pin valve lift, which decides nozzle pin valve shim thickness (Horsepower different) |
| Test armature total range, which decides circlip thickness | |
| Test armature range, which decides the hexagonal shim thickness below | |
| Test remaining air gap, which decides the hexagonal shim thickness above. | |
| Friendly Tips | If VE is not proper, pls debug solenoid valve spring force adjusting shim. |
| If LL is not proper, pls debug nozzle pin valve spring force shim. | |
| Armature lift test: | 45-50um |
| Cross lift test: | 35-50um |
| Remaining air gap testing: | 35-55um |
| The armature total range: | 50-70um |
| Injector type: | Common rail diesel |
| Weight | 3 KG |
